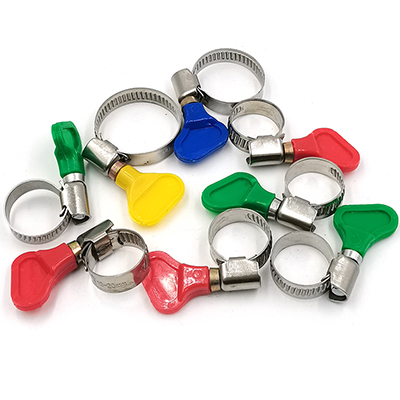

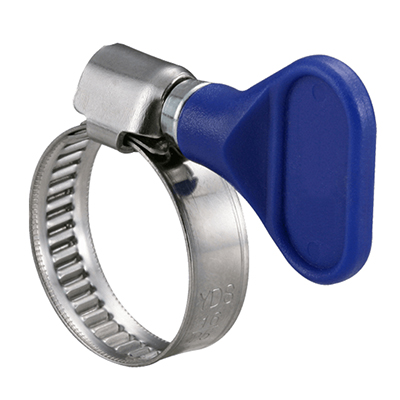

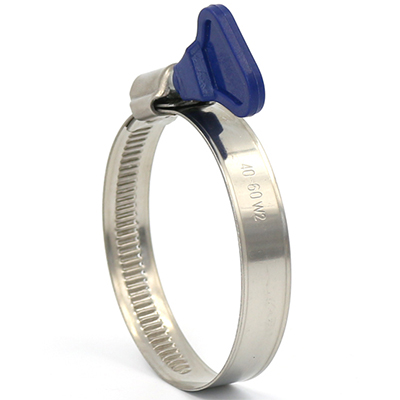

Germany type hose clamp with handle

Product Attributes :

Band Width: 9mm / 12mm

Band Thickness: 0.6mm

Standard: DIN3017

Size:6mm - 320mm

Material: stainless steel

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Comply with DIN3017 Germany type hose clamp standard with Non-Perforated band, the perfect smooth of band’s brim, no burr on surface to damage the hose when installation. The design of convex-concave band is having more stable quality in heat or cold temperature.

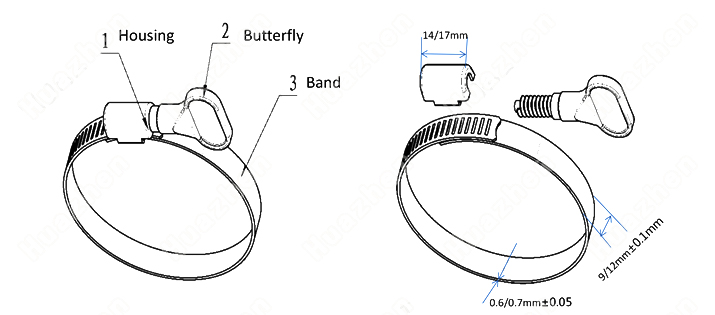

Dimension---------------------------------------------------------------------------------------------------------------------

Size (mm)	Band Width (mm)	Thickness (mm)
8-12mm	9/12mm	0.6mm
10-16mm	9/12mm	0.6mm
12-20mm	9/12mm	0.6mm
16-25mm	9/12mm	0.6mm
20-32mm	9/12mm	0.6mm
25-40mm	9/12mm	0.6mm
30-45mm	9/12mm	0.6mm
32-50mm	9/12mm	0.6mm
40-60mm	9/12mm	0.6mm
50-70mm	9/12mm	0.6mm
60-80mm	9/12mm	0.6mm
70-90mm	9/12mm	0.6mm
80-100mm	9/12mm	0.6mm
90-110mm	9/12mm	0.6mm
100-120mm	9/12mm	0.6mm
110-130mm	9/12mm	0.6mm
120-140mm	9/12mm	0.6mm
130-150mm	9/12mm	0.6mm
140-160mm	9/12mm	0.6mm
150-170mm	9/12mm	0.6mm
160-180mm	9/12mm	0.6mm
170-190mm	9/12mm	0.6mm
180-200mm	9/12mm	0.6mm

Material-------------------------------------------------------------------------------------------------------------------------

W1: Band material is Galvanized steel; Housing material is Galvanized steel; Screw material is Galvanized steel.
W2: Band material is SS201 or SS304; Housing material is Galvanized steel; Screw material is Galvanized steel.
W4: Band material is SS201 or SS304; Housing material is SS201 or SS304; Screw material is SS201 or SS304.

Tightening Torque-----------------------------------------------------------------------------------------------------------

The DIN 3017 Germany type hose clamp with handle recommended installation free torque is less than 1Nm,load torque is 6.5Nm.

Feature--------------------------------------------------------------------------------------------------------------------------

Easy to operate,sturdy lock,pressure resistance,torque balanced,big adjustable range
The perfect smooth stamped band and burr-free flared edges prevent hoses from damaging during installation
Welding on the back of housing
It is suitable for fasteners with soft and hard pipe connections.It is more easier to operate.

Application--------------------------------------------------------------------------------------------------------------------

German Type Hose Clamp With Handle is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum, chemicals, pharmaceuticals, agriculture, and other water,oil, steam, dust,etc

German Type Hose Clamp With Handle is widely used in various fields such as automobile oil circuits, engine pipelines, drainage pipelines, building materials, hardware, etc.

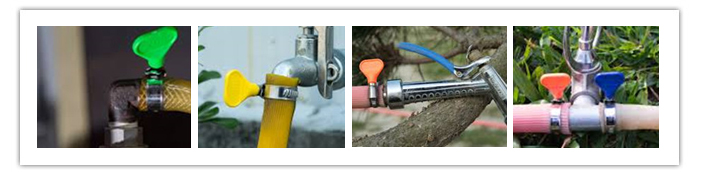

You can see some usage scenario in below picture.
