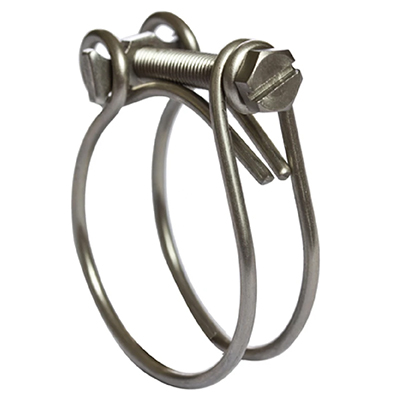

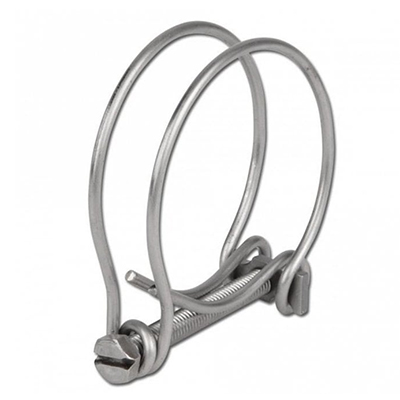

Double wire hose clamps
Double wire hose clamps Double wire hose clamps

Double wire hose clamps

Product Attributes :

Wire Diameter: 2.0mm/2.5mm/3.0mm

Bolt: M5*30/M6*35/M8*40/M8*50/M8*60

Size: 13-16mm to all

Samples: Free

OEM/ODM: OEM/ODM is ok

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Double wire hose clamps is available in galvanized or stainless steel to resist high pressure due to double joint.  Double Wire Hose Clamps features a strengthened steel that offers many advantages such as fat mounting, resistance to corrosion, and double-joint.  The Double Wire Hose Clamps provides high-resistance even at high-pressure points.  Zinc-plated to protect against rust and corrosion.

  • Double wire hose clips to fit most pond corrugated hose.
  • The clips are designed to clasp the hose between the hose ribs.
  • Each clips has a screw attachment making it easier to adjust to fit snugly on the hose

Material-------------------------------------------------------------------------------------------------------------------------

  • W1: All material Galvanized Carbon Steel,Zinc Plated Steel.

Dimension----------------------------------------------------------------------------------------------------------------------

Size Min

Size Max

Bolt

13mm

16mm

M5*30

16mm

19mm

M5*30

19mm

23mm

M5*30

23mm

26mm

M5*35

26mm

32mm

M6*35

32mm

38mm

M6*35

38mm

42mm

M8*40

42mm

48mm

M8*40

52mm

60mm

M8*40

58mm

66mm

M8*40

61mm

73mm

M8*50

74mm

80mm

M8*50

82mm

89mm

M8*50

92mm

98mm

M8*50

103mm

115mm

M8*50

115mm

125mm

M8*50

Feature-------------------------------------------------------------------------------------------------------------------------

  • Double wire hose clips to fit most pond corrugated hose.
  • Bolt adjustable clamps for hose applications.

Application--------------------------------------------------------------------------------------------------------------------

It is widely used for pipe union joint of high-end car/high-end equipment/ship/mechanical engineering.

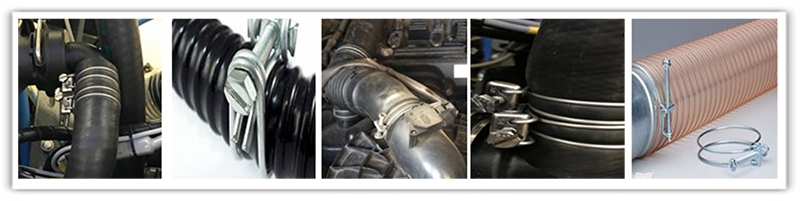

You can see some usage scenario in below picture.

Package-------------------------------------------------------------------------------------------------------------------------

Double wire hose clamps package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
