Spring hose clamp
Spring hose clamp Spring hose clamp

Spring hose clamp

Product Attributes :

Band: 6 / 8 / 10 / 12 / 15mm

Thickness: 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.5 / 1.8 / 2.0mm

Size: 4mm - 52mm

Material: 65Mn spring steel

Finish: Black / Zinc Plated / Dacromet

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Spring hose clamp is self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

  • Springhose clamps as hose clamps have proven themselves in the water cooling sector and have become essential for many users and systems.
  • Hose clamps are important for fixation of tubing on barbed fittings without a union nut. These spring hose clamp can be opened hassle-free by hand without any tools. It’s even easier with pliers!

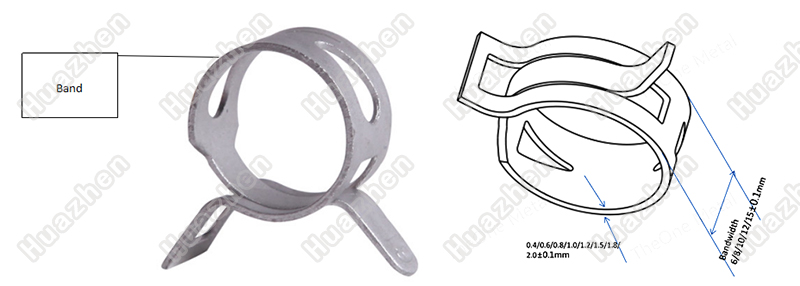

Dimension----------------------------------------------------------------------------------------------------------------------



Size Min(mm)

Band Widthmm (mm)

Thickness (mm)

4mm

6mm

0.4mm

5mm

6mm

0.6mm

6mm

6mm

0.6mm

7mm

6mm

0.6mm

8mm

8mm

0.8mm

9mm

8mm

0.8mm

9.5mm

8mm

0.8mm

10mm

8mm

0.8mm

10.5mm

8mm

0.8mm

11mm

8mm

0.8mm

12mm

8mm

0.8mm

13mm

10mm

1mm

14mm

10mm

1mm

14.5mm

10mm

1mm

15mm

10mm

1mm

16mm

12mm

1mm

17mm

12mm

1mm

18mm

12mm

1mm

20mm

12mm

1mm

25mm

12mm

1.2mm

30mm

15mm

1.5mm

35mm

15mm

1.8mm

40mm

15mm

1.8mm

45mm

15mm

1.8mm

52mm

15mm

2mm

Feature--------------------------------------------------------------------------------------------------------------------------

Spring Hose clamp is important for fixation of tubing on barbed fittings without a union nut. These spring hose clamp can be opened hassle-free by hand without any tools. It’s even easier with pliers!

  • One-piece, bolt-free hose clamp
  • Even distribution of clamping force
  • Optimum roundness
  • Temperature resistance from –40 °C to 200 °C
  • Automatically re-tensions to accommodate temperature fluctuations
  • Corrosion resistance up to 720 h (According to DIN EN ISO 9227)

Application--------------------------------------------------------------------------------------------------------------------

spring hose clamp are self-tightening, sealing elements made from tempered spring band steel offeringa high level of flexible to ensure reliable, leak proof connection of a hose to s fitting.

  • Automobile industry
  • auto parts industry,
  • agriculture, sanitary ware
  • medical treatment
  • plastic industry,
  • machinery oil, pipe joints etc.

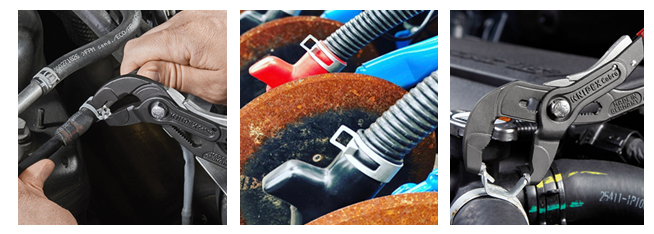

You can see some usage scenario in below picture.
