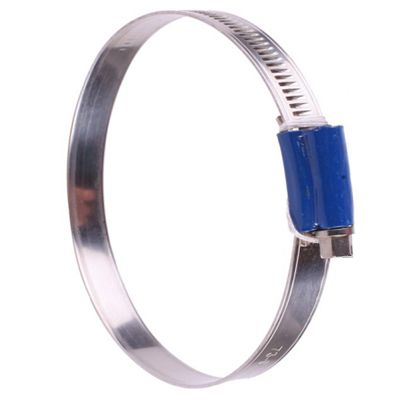

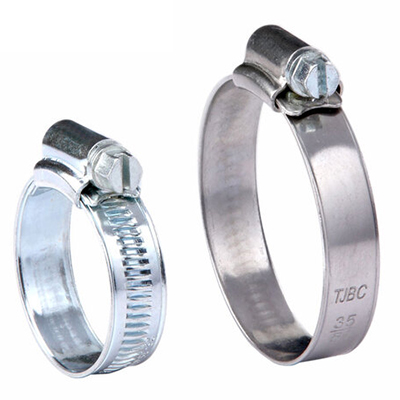

British type hose clamp

Product Attributes :

Thickness: 0.8mm / 0.9mm

Band Width: 9.7mm / 11.7mm

Material: Carbon Steel, Stainless Steel

Bolt & Nut: Carbon Steel, Stainless Steel

Surface: Zinc Coated, Yellow or Silver

Size: (10-16)mm ~ (300-320)mm

Product Description

Description--------------------------------------------------------------------------------------------------------------------

British Style hose clamps is based on the BS-5315 specification. The three component design produces a robust clip optimizing free torque, with high final torque and the strong material allows the use of thinner band, thus giving band flexibility which readily conforms to the shape of the hose.

British Style Hose Clamp is also a main Hose Clamps(Steel Pipe Clamp Or Steel Hose Clip) on the market. The adoption of through-hole technology, the wide range of application of hose clamps, torsion and pressure, hose clamp torque torque balance, tight, tight, wide adjustment range, suitable for 30mm or more fasteners connected hardware and software, assembly appearance Beautiful.

Material-------------------------------------------------------------------------------------------------------------------------

W1: Band, housing and screw are zinc plated steel.
W4: Band, housing and screw are AISI 301SS/304SS.

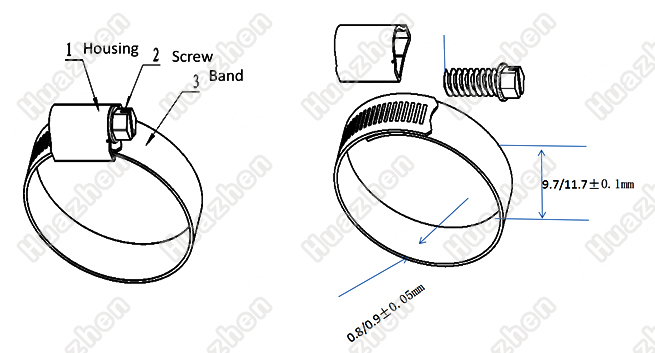

Dimension----------------------------------------------------------------------------------------------------------------------

British Style Hose Clamp

Size (mm)	Thickness(mm)	Band Width(mm)	Suggested Installtorque
10-16	0.8mm	9.7	3.0
13-19	0.8mm	9.7	3.0
16-25	0.8mm	9.7	3.0
19-29	0.8mm	9.7	3.0
22-32	0.9mm	11.7	4.8
25-38	0.9mm	11.7	4.8
32-44	0.9mm	11.7	5.2
35-51	0.9mm	11.7	5.2
38-57	0.9mm	11.7	5.2
44-64	0.9mm	11.7	5.2
51-70	0.9mm	11.7	5.2
64-76	0.9mm	11.7	5.2
70-89	0.9mm	11.7	5.2
76-92	0.9mm	11.7	5.2
80-100	0.9mm	11.7	5.2
90-110	0.9mm	11.7	5.2
100-120	0.9mm	11.7	5.2
110-130	0.9mm	11.7	5.2
120-140	0.9mm	11.7	5.2
130-150	0.9mm	11.7	5.2
140-160	0.9mm	11.7	5.2
150-170	0.9mm	11.7	5.2
160-180	0.9mm	11.7	5.2
170-190	0.9mm	11.7	5.2
180-200	0.9mm	11.7	5.2
190-210	0.9mm	11.7	5.2
200-220	0.9mm	11.7	5.2
220-240	0.9mm	11.7	5.2
230-250	0.9mm	11.7	5.2
240-260	0.9mm	11.7	5.2
280-300	0.9mm	11.7	5.2
300-320	0.9mm	11.7	5

Tightening Torque------------------------------------------------------------------------------------------------------

Free Torque: 9.7mm&11.7mm ≤ 1.0N.m
Load Torque: 9.7mm band ≥ 3.5N.m & 11.7mm band ≥ 5.0N.m

Feature----------------------------------------------------------------------------------------------------------------------

High mounting force.
Worm friction is small, suitable for medium and high-grade models, pole equipment, pipe and hose or anti-corrosion material parts connection.
The material inclduing Carbon Steel and Stainless Steel, and the nuts also with these two material.
The Main Market for UK and European and Middle East market or as clients demand.
edges are rounded without hurting the hose, the twisting is smooth and reusable

Application-----------------------------------------------------------------------------------------------------------------

British type hose clamp are widely used in civil residences, office buildings, workshops, port terminals, power stations (water, coal, nuclear, photovoltaic ), terminals, railway stations, bus stations, stadiums, hospitals, schools, etc.

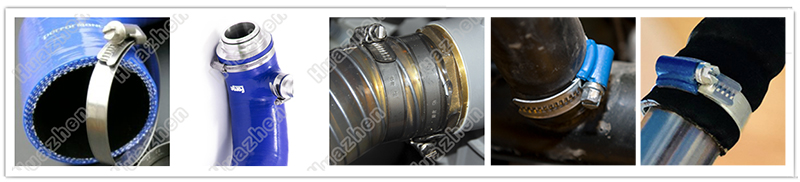

You can see some usage scenario in below picture.
