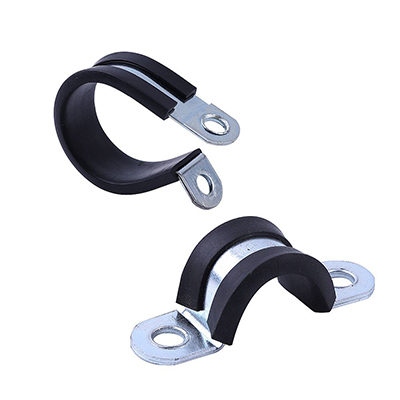

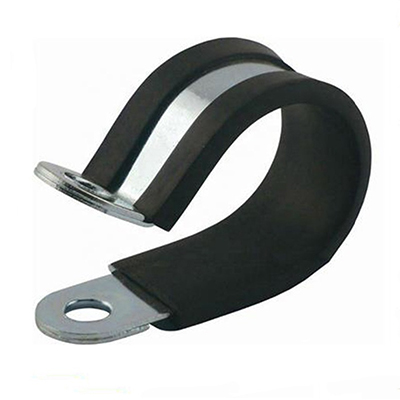

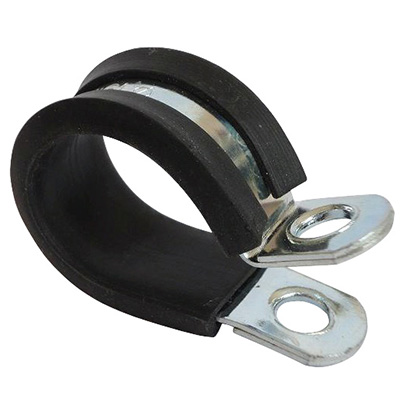

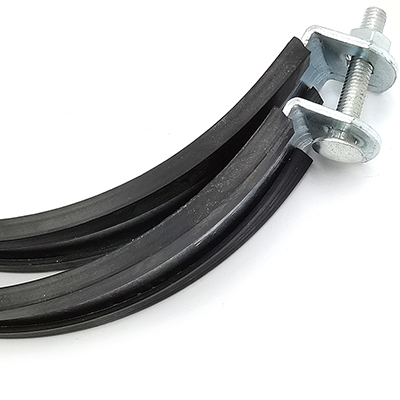

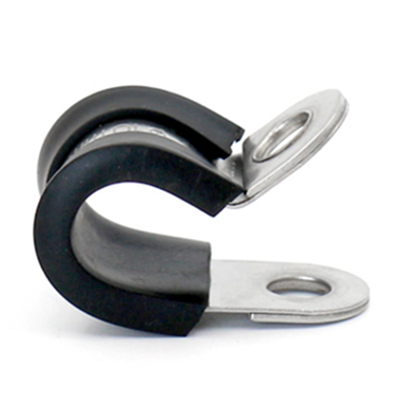

Rubber hose clamp
Rubber hose clamp Rubber hose clamp Rubber hose clamp Rubber hose clamp Rubber hose clamp

Rubber hose clamp

Product Tags : Rubber hose clamp
Product Attributes :

Material: SS201/304/316 or Galvanized steel

Size: 6mm - 76mm and customized

Band Width: 12 / 15 / 20mm

Standard: DIN3016

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Rubber hose clamp has a rubber layer on the outside of the fixing part, which protects the surface of the wire to be protected. The rubber layer has good flexibility, shiny surface, oil and acid resistance, and chemical resistance. Fixing Clamp With Rubber has high strength, good impact resistance, easy wiring and good interchangeability. The metal surface is acid-passed and passivated to resist corrosion and aging.

  • Type 304 stainless steel band for resistance to scaling and corrosion
  • Slotted mounting hole aids alignment for mounting
  • EPDM liner wraps band to protect hose or wire from abrasion
  • For use with hoses and wiring bundles

P Clip rubber-lined connecting clamps, also known as “P-Clips” are composed of a zinc-plated mild steel band lined with EPDM rubber.

Material-------------------------------------------------------------------------------------------------------------------------

  • W1 - All parts carbon steel with zinc plated, rubber EPDM
  • W4 - All parts stainless steel 304, rubber EPDM

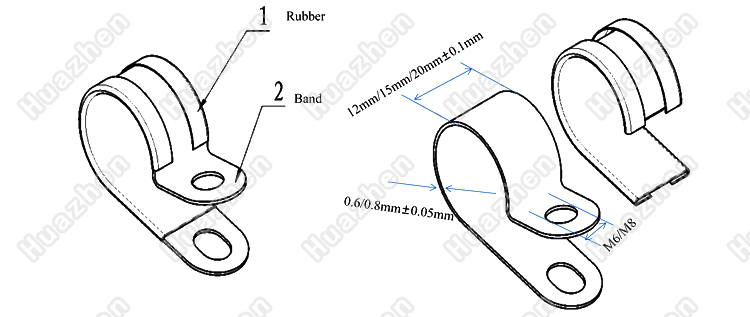

Dimension----------------------------------------------------------------------------------------------------------------------


Rubber hose clamp



CLAMP RANGE Max(mm)

BANDWIDTH

THICKNESS

4mm

12/15/20mm

0.6/0.8/1.0mm

6mm

12/15/20mm

0.6/0.8/1.0mm

8mm

12/15/20mm

0.6/0.8/1.0mm

10mm

12/15/20mm

0.6/0.8/1.0mm

13mm

12/15/20mm

0.6/0.8/1.0mm

16mm

12/15/20mm

0.6/0.8/1.0mm

19mm

12/15/20mm

0.6/0.8/1.0mm

20mm

12/15/20mm

0.6/0.8/1.0mm

25mm

12/15/20mm

0.6/0.8/1.0mm

29mm

12/15/20mm

0.6/0.8/1.0mm

30mm

12/15/20mm

0.6/0.8/1.0mm

35mm

12/15/20mm

0.6/0.8/1.0mm

40mm

12/15/20mm

0.6/0.8/1.0mm

45mm

12/15/20mm

0.6/0.8/1.0mm

50mm

12/15/20mm

0.6/0.8/1.0mm

55mm

12/15/20mm

0.6/0.8/1.0mm

60mm

12/15/20mm

0.6/0.8/1.0mm

65mm

12/15/20mm

0.6/0.8/1.0mm

70mm

12/15/20mm

0.6/0.8/1.0mm

76mm

12/15/20mm

0.6/0.8/1.0mm

Features-------------------------------------------------------------------------------------------------------------------------

  • Rubber cushion absorbs vibration and protect the hold objects.
  • The rubber profile is in EPDM material, insulated,used to fixing cables.
  • Bands have reinforced bolt holes for extra strength.
  • The wrapping rubber provides excellent protection to the fixed wire and pipe, with good flexibility, smooth surface, chemical corrosion resistance, high strength, good impact resistance, waterproof, oil-proof and dustproof.

Application---------------------------------------------------------------------------------------------------------------------

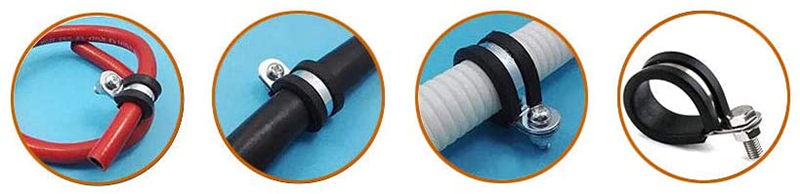

Rubber hose clamp mainly use in securing pipes, cables and cable harnesses, cable ducts, hose and other flow lines. Used in almost all sectors of industry, e.g.

  • in the automotive industry, mechanical and application engineering,
  • hydraulics and pneumatics,
  • measurement and control engineering and the chemical,
  • shipbuilding, electrical and food processing industries.

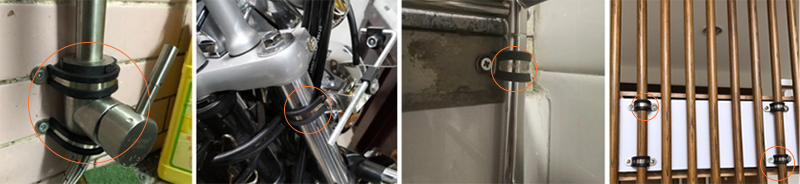

You can see some usage scenario in below picture.
