Pipe clamp

Description--------------------------------------------------------------------------------------------------------------------

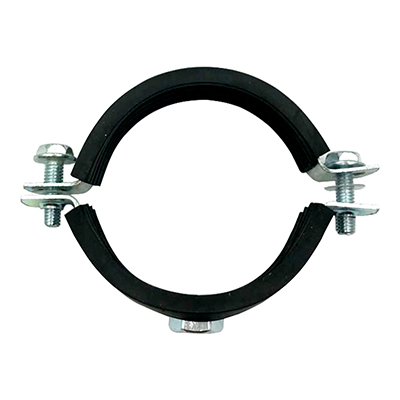

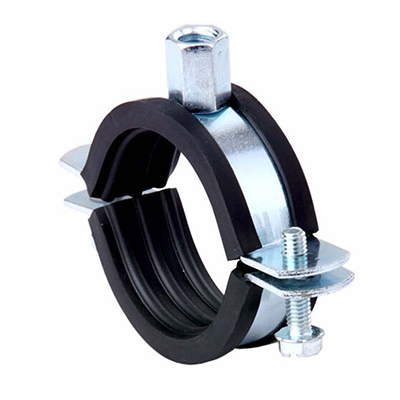

Our stainless steel rubber lined pipe clamp is  designed to cut down on unwanted noise and vibrations within the pipework. They are available in a wide range of sizes to fit all common pipe types.

• Robust two-screw pipe clamp with wide opening angle for the light and medium load range
• Compact design, top-quality pipe clamp with extremely wide opening angle. Capable of bearing extreme loads.
• Zinc-plated, significantly stronger strip material compared to conventional two-screw clamps: from 20 x 1.5 mm (1/4 inch) to 23x2.0 (4 to 6 inch); up to almost 50% higher load possible
• M8/M10 combination connection nut, welded all round to prevent from working loose.

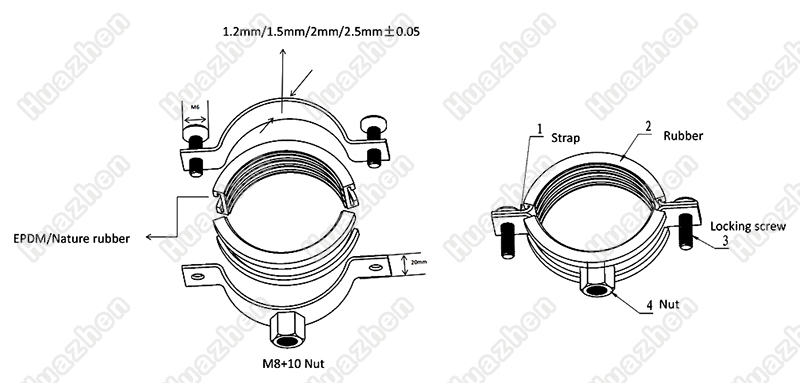

Dimension---------------------------------------------------------------------------------------------------------------------

Material-------------------------------------------------------------------------------------------------------------------------

• W1 - All parts carbon steel with zinc plated, rubber EPDM
• W4 - All parts Stainless steel 304, rubber EPDM

Tightening Torque-----------------------------------------------------------------------------------------------------------

• 19mm to 35mm:≥ 60N.m
• 43mm to 80mm:≥ 80N.m
• 92mm to 252mm:≥100N.m

Feature-------------------------------------------------------------------------------------------------------------------------

• Silicone-free EPDM rubber profile for easy gliding.
• Two screws allow for ideal adaptation to the outer pipe diameter.
• The combination connecting nut with thread M8/M10 enables optimised mounting choices.
• The sound insulation insert offers noise protection and prevents contact corrosion.
• The screw's safety feature ensures trouble-free installation.
• Rubber lined pipe clamp provide support and protection and are fully adjustable to suit most pipe sizes.

Application--------------------------------------------------------------------------------------------------------------------

Pipe clamps for state-of-the-art soundproofed mounting of pipes in accordance with DIN 4109, for use in domestic properties as well as industrial builds and projects.

Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements).

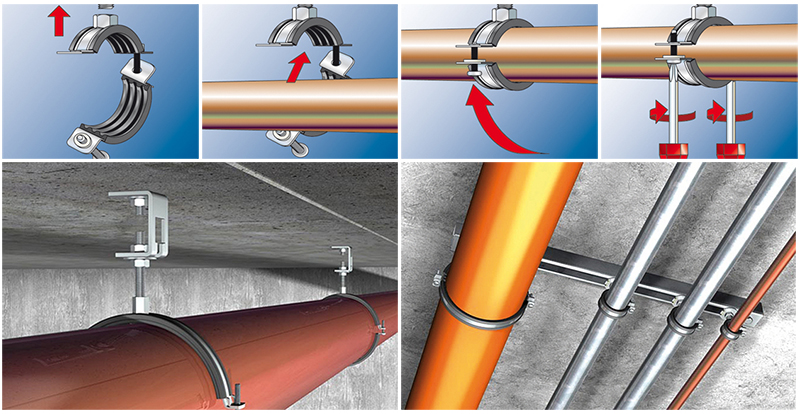

You can see some usage scenario in below picture.
