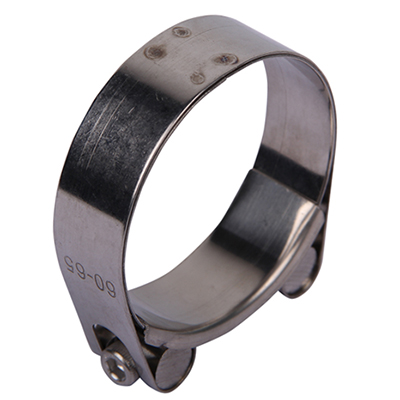

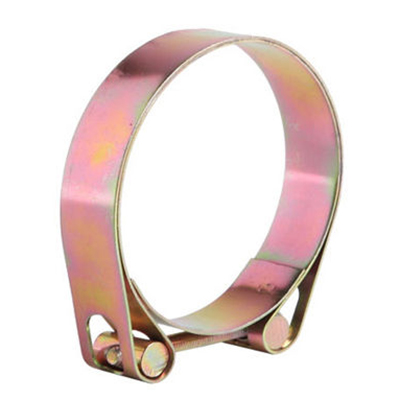

Single bolt double band hose clamp

Product Attributes :

Bandwidth: 20mm

Thickness: 1.0mm

Size: 30-40mm to 155-160mm

Screw: M6 / M8 / M10

Break Torque: 15N.m-35N.m

OEM/ODM: OEM/ODM is ok

Product Description

Description--------------------------------------------------------------------------------------------------------------------

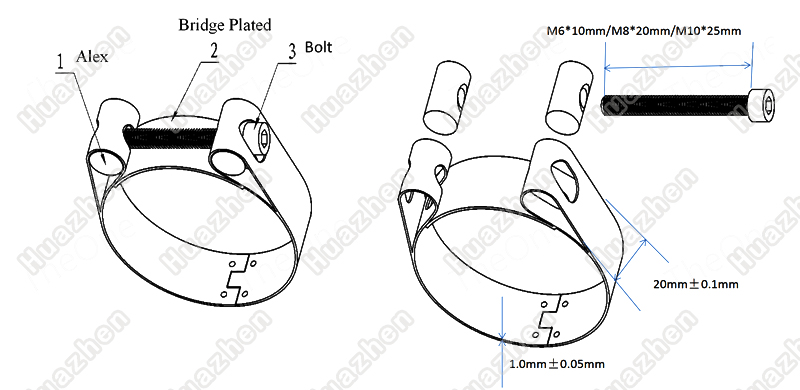

Single Bolt Double Band Hose Clamp has a double band with thickness 1.0 mm making it an extra strong heavy duty clamp.
The Power clamp has a high strength 8.8 grade socket head bolt which allow for easy installation with an allen key.

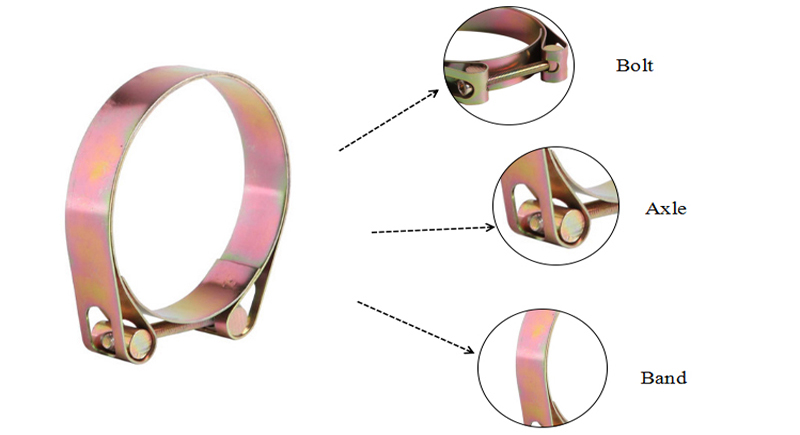

Single Bolt Double Band Hose Clamp solid trunnions complement the strength of the double band resulting in high break torque and excellent tensile strength.

Material-------------------------------------------------------------------------------------------------------------------------

W1: all parts are carbon steel
W2: band and bridge are SS201 or SS304, other parts are carbon steel
W4: all parts are stainless steel SS201 or SS304
W5: all parts are stainless steel SS316

Dimension----------------------------------------------------------------------------------------------------------------------

Size Min	Size Max	Bandwidth	Thickness	Torque
35mm	40mm	20mm	1.0mm	≥15
40mm	45mm	20mm	1.0mm	≥15
45mm	50mm	20mm	1.0mm	≥15
50mm	55mm	20mm	1.0mm	≥15
55mm	60mm	20mm	1.0mm	≥15
60mm	65mm	20mm	1.0mm	≥25
65mm	70mm	20mm	1.0mm	≥25
70mm	75mm	20mm	1.0mm	≥25
75mm	80mm	20mm	1.0mm	≥25
80mm	85mm	20mm	1.0mm	≥25
85mm	90mm	20mm	1.0mm	≥25
90mm	95mm	20mm	1.0mm	≥25
95mm	100mm	20mm	1.0mm	≥25
100mm	105mm	20mm	1.0mm	≥25
105mm	110mm	20mm	1.0mm	≥25
110mm	115mm	20mm	1.0mm	≥25
115mm	120mm	20mm	1.0mm	≥25
120mm	125mm	20mm	1.0mm	≥40
125mm	130mm	20mm	1.0mm	≥40
130mm	135mm	20mm	1.0mm	≥40
135mm	140mm	20mm	1.0mm	≥40
140mm	145mm	20mm	1.0mm	≥40
145mm	150mm	20mm	1.0mm	≥40
150mm	155mm	20mm	1.0mm	≥40
155mm	160mm	20mm	1.0mm	≥40

Feature--------------------------------------------------------------------------------------------------------------------------

smooth band protects hose and single nut adjustment
the material could be carbon steel and stainless steel

Application---------------------------------------------------------------------------------------------------------------------

Single Bolt Double Band Hose Clamp is for automotive performance and general applications, including turbo charging, intercooler, air intake, radiator and exhaust pipes. Bands can withstand extremely high tensile forces.

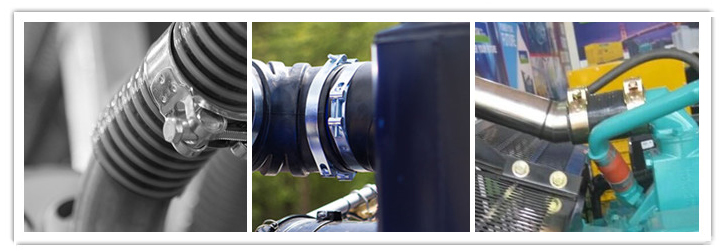

You can see some usage scenario in below picture.
