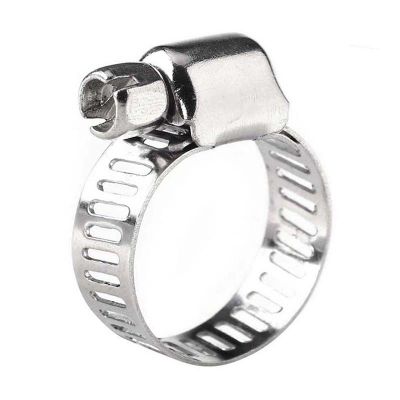

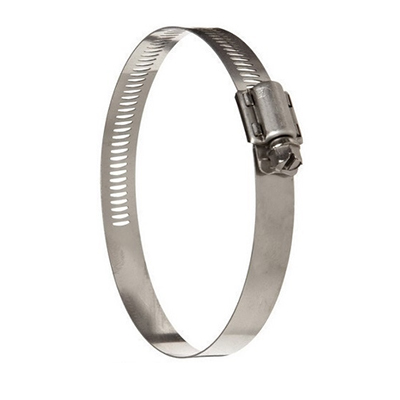

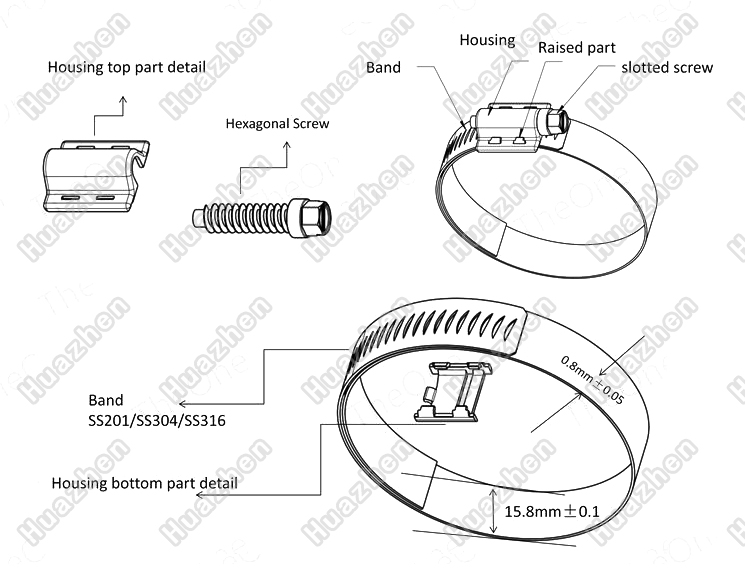

European type hose clamp Composed of adjustable screws, hoop cover and steel belt, the steel belt is arranged with rectangular through hole, with the characteristics of large torque, high fastness, and unlimited length, can be easily used in some large volume, outdoor equipment strapping. European type hose clamp are available in carbon steel , SS200 series and SS300 series.
Unique off-set non-welded design of the housing provides resistance to over-tightening damage to the hose. The short housing saddle gives a smooth underside ensuring high sealing efficiency.
W1: band / housing / screw is all Galvanized Steel
W4: all stainless steel 201 or 304
W5: band / housing / screw is all stainless steel 316
| Size Min (mm) | SIze Max (mm) | Inch |
Bandwidth(mm) |
Thickness(mm) |
|
13 |
19 |
3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
16 |
25 |
1” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
18 |
32 |
1-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
21 |
38 |
1-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
21 |
44 |
1-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
27 |
51 |
2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
33 |
57 |
2-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
40 |
63 |
2-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
46 |
70 |
2-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
52 |
76 |
3” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
59 |
82 |
3-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
65 |
89 |
3-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
72 |
95 |
3-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
78 |
101 |
4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
84 |
108 |
4-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
91 |
114 |
4-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
105 |
127 |
5” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
117 |
140 |
5-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
130 |
153 |
6” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
142 |
165 |
6-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
|
155 |
178 |
7” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |

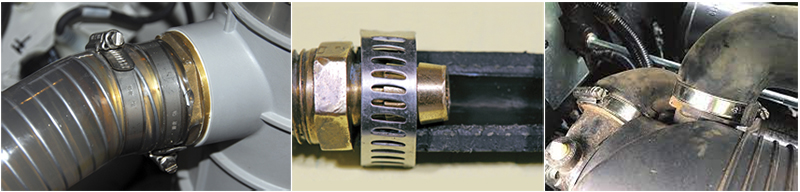

European type hose clamp is widely used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry.
