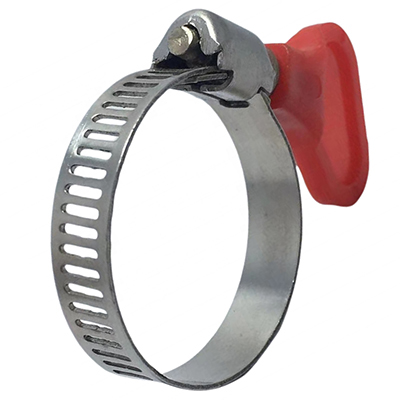

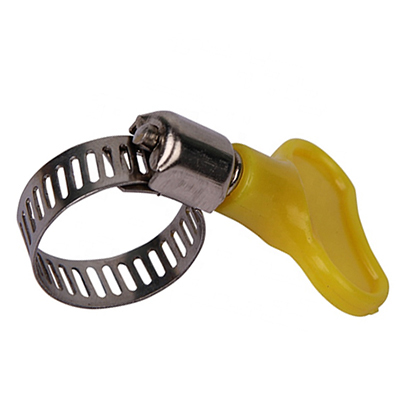

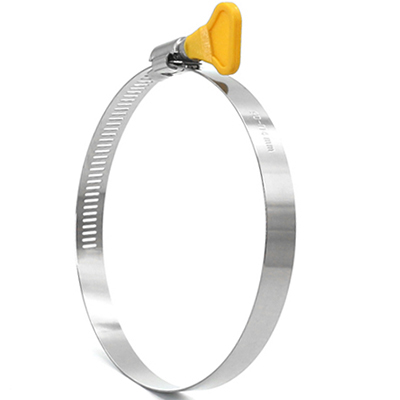

American type hose clamp with handle
American type hose clamp with handle American type hose clamp with handle American type hose clamp with handle

American type hose clamp with handle

Product Tags : American type hose clamp
Product Attributes :

Break Torque: ≥7 N.m

Free Torque: ≤1.N.M

Band Width: 8mm / 12.7mm

Thickness: 0.6mm

Size: 8-12mm ~ 142-165mm





Product Description

Description--------------------------------------------------------------------------------------------------------------------

American type hose clamp with handle is widely used on the connection of all kinds of hosepipe, it needn’t special tool, just turning the key by hand for fastening.The band is pierced ,it can make the screws tightly bite the steel belt.

American type hose clamp with handle,the recommended installation torque is >=2.5N.m.

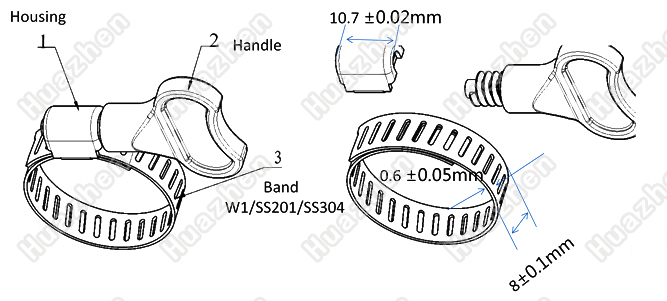

Dimension----------------------------------------------------------------------------------------------------------------------

American type hose clamp with handle
Size(mm) Band Width Thicnkess Torque(N.m)
8-12 8mm 0.6mm ≥2.5
10-16 8mm 0.6mm
≥2.5
13-19 8mm 0.6mm
≥2.5
13-23 8mm 0.6mm
≥2.5
16-25 8mm 0.6mm
≥2.5
18-32 12.7mm 0.6mm ≥2.5
21-38 12.7mm 0.6mm
≥2.5
21-44 12.7mm 0.6mm
≥7.0
27-51 12.7mm 0.6mm
≥7.0
33-57 12.7mm 0.6mm
≥7.0
40-63 12.7mm 0.6mm
≥7.0
46-70 12.7mm 0.6mm
≥7.0
52-76 12.7mm 0.6mm
≥7.0
59-82 12.7mm 0.6mm
≥7.0
65-89 12.7mm 0.6mm
≥7.0
72-95 12.7mm 0.6mm
≥7.0
78-101 12.7mm 0.6mm
≥7.0
84-108 12.7mm 0.6mm
≥7.0
91-114 12.7mm 0.6mm
≥7.0
105-127 12.7mm 0.6mm
≥7.0
117-140 12.7mm 0.6mm
≥7.0
130-153 12.7mm 0.6mm
≥7.0
142-165 12.7mm 0.6mm
≥7.0

Material--------------------------------------------------------------------------------------------------------------------------

  • W1: Band material is Galvanized steel; Housing material is Galvanized steel; Screw material is Galvanized steel
  • W2: Band material is SS201 or SS304; Housing material is Galvanized steel; Screw material is Galvanized steel
  • W4: Band material is SS201 or SS304; Housing material is SS201 or SS304; Screw material is SS201 or SS304

Feature---------------------------------------------------------------------------------------------------------------------------

  • Turn key hose clamp,easy twist by handle
  • Perforated band
  • Smooth band inside to protect hose surface from damage
  • Round edge,no burr,no deformation,can be reused
  • Wrest resistant and high crushing strength
  • Corrosion resistant,and protects the rubber surface is not damaged
  • Low free torque
  • The perfect smooth stamped band and burr-free flared edges prevent hoses from damaging during installation
  • Welding on the back of housing
  • Unique butterfly shaped screw head easily twists for hand tightening without tools.

Application---------------------------------------------------------------------------------------------------------------------

American Type Hose Clamp With Handle mainly used for interface oil, gas, liquid glue secret aircraft, construction, automobiles, tractors, gasoline engines, diesel engines, irrigation machines and other mechanical devices, all kinds of hose system interfaces necessary tightening machine connected accessories

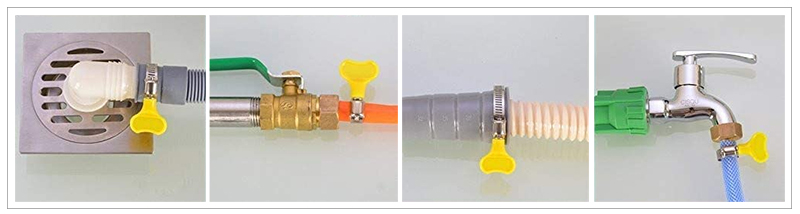

You can see some usage scenario in below picture.
