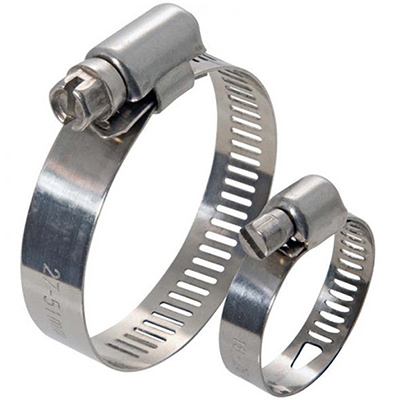

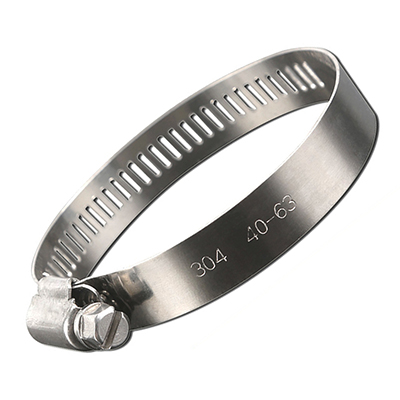

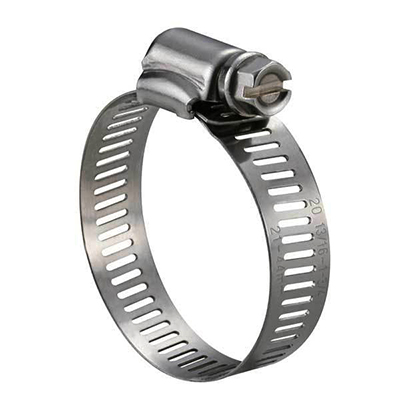

American type hose clamp

Product Tags : American type hose clamp

Product Attributes :

Band Width: 8/10/12.7mm

Band Thickness: 0.6/0.65mm

Hex Head Screw:6/ 8mm

Material: Carbon steel/ Stainless Steel

Surface Treatment: Zinc-plated/Polishing

Band width 12.7mm, perforated band, worm gear clamp

Product Description

Description--------------------------------------------------------------------------------------------------------------------

American type hose clamps are popular and economy to widely use in industrial, automotive, household and agriculture applications. Also called American type hose clamps. The bands have clean punched rectangular perforations that hold strong and connect easily.

Worm gear clamp, band width 12.7mm(1/2" band), are suitable for most common home and automotive applications.

Material-------------------------------------------------------------------------------------------------------------------------

W1 - All parts carbon steel with zinc plated
W2 - Hosing and screw carbon steel, band SS201/SS301/SS304
W4 - All parts stainless steel 201/301/304

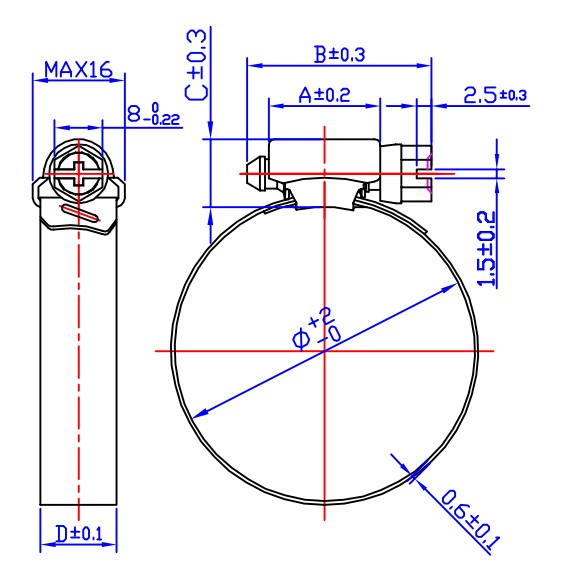

Dimension----------------------------------------------------------------------------------------------------------------------

SAE Size	Dimension		Band Width	Thickness	Qty/Ctn
SAE Size	mm	in inch	Band Width	Thickness	Qty/Ctn
6	11-20	0.44"-0.78"	8/10mm	0.6/0.6mm	1000
8	13-23	0.5"-0.91"	8/10mm	0.6/0.6mm	1000
10	14-27	0.56"-1.06"	8/10mm	0.6/0.6mm	1000
12	18-32	0.69"-1.25"	10/12.7mm	0.6/0.7mm	1000
16	21-38	0.81"-1.5"	10/12.7mm	0.6/0.7mm	1000
20	21-44	0.81"-1.75"	10/12.7mm	0.6/0.7mm	500
24	27-51	1.06"-2"	10/12.7mm	0.6/0.7mm	500
28	33-57	1.31"-2.25"	10/12.7mm	0.6/0.7mm	500
32	40-64	1.56"-2.5"	10/12.7mm	0.6/0.7mm	500
36	46-70	1.81"-2.75"	10/12.7mm	0.6/0.7mm	500
40	50-76	2"-3"	10/12.7mm	0.6/0.7mm	500
44	59-83	2.31"-3.25"	10/12.7mm	0.6/0.7mm	500
48	65-89	2.56"-3.5"	10/12.7mm	0.6/0.7mm	500
52	72-95	2.81"-3.75	10/12.7mm	0.6/0.7mm	500
56	78-102	3.06"-4"	10/12.7mm	0.6/0.7mm	250
60	84-108	3.31"-4.25"	10/12.7mm	0.6/0.7mm	250
64	91-114	3.56"-4.5"	10/12.7mm	0.6/0.7mm	250
72	103-127	4.06"-5"	10/12.7mm	0.6/0.7mm	250
80	117-140	4.62"-5.5"	10/12.7mm	0.6/0.7mm	250
88	130-152	5.12"-6"	10/12.7mm	0.6/0.7mm	250
96	141-165	5.56"-6.5"	10/12.7mm	0.6/0.7mm	250
104	157-178	6.18"-7"	10/12.7mm	0.6/0.7mm	250

Tightening Torque------------------------------------------------------------------------------------------------------

The recommended installation torque for 8mm bandwidth is >=2N.m
The recommended installation torque for 12.7mm bandwidth is >=7N.m

Application-----------------------------------------------------------------------------------------------------------------

American type hose clamp is widely used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry.

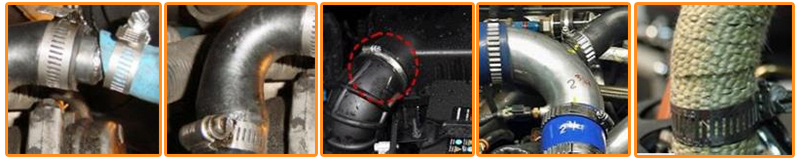

You can see some usage scenario in below picture.
