Germany type hose clamp

Product Tags : Germany type hose clamp

Product Attributes :

Type: Hose Clamps

Standard: DIN3017

Band width: 9mm /12mm

Material: Steel / Stainless Steel

Band Thickness: 0.6mm (0.024”)

Germany type hose clamp, non-perforated band, band width 9mm and 12mm

Product Description

Description--------------------------------------------------------------------------------------------------------------------

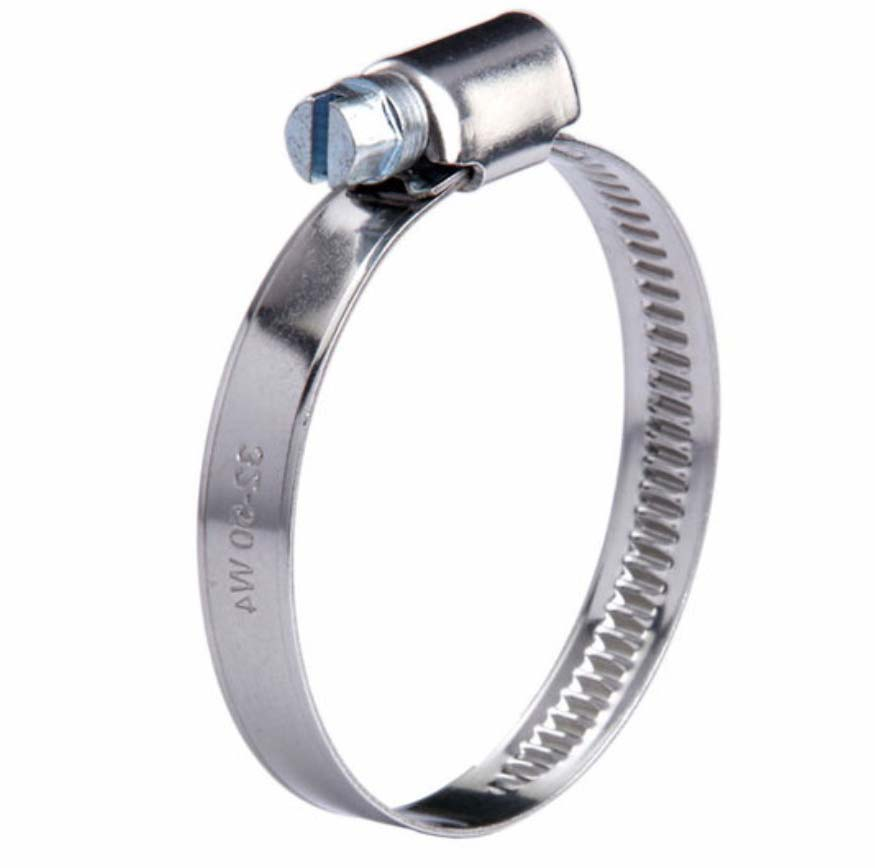

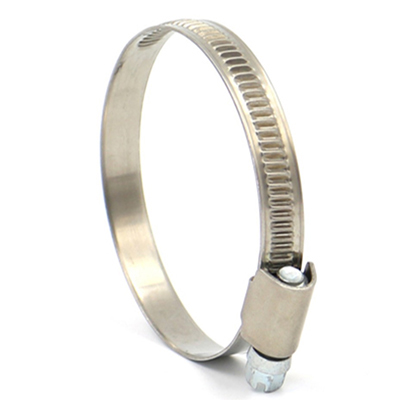

DIN 3017 German Type Worm drive hose clamp Use the open internal and external circle structure,and with screw fixed.It is effectively to solve the problem that when small diameter soft tube connect the hared tube,it is easy appeardead angle,and liquid or gas leakage problem.

The non-preforated band protects the soft-hoses surface from shearing during installation. And the worm drive clamp is necessary for all kinds of hose interface tighten connecting fittings.

DIN 3017 German Type Worm drive hose clamp is commonly used in automotive,industrial,mining,marine and general hardware applications.

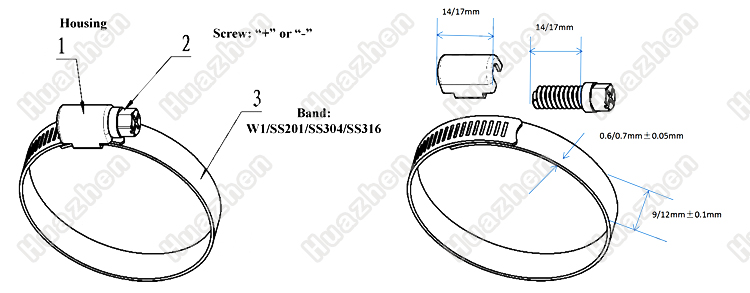

DIN 3017 German Type Worm drive hose clamp components include band,housing and screw.

Dimension----------------------------------------------------------------------------------------------------------------------

Dimension range
in mm	in inch	in mm	in inch
8-12	5/16" - 1/2"	70-90	2 3/4" - 3 1/2"
10-16	3/8" - 5/8"	80-100	3 1/8" - 4"
12-20	1/2" - 3/4"	90-110	3 1/2" - 4 3/8"
12-22	1/2" - 7/8"	100-120	4" - 4 3/4"
16-25	5/18" - 1"	110-130	4 3/8" - 5 1/8"
16-27	1" - 15/8"	120-140	4 3/4" - 5 1/2"
20-32	3/4" - 1 1/4"	130-150	5 1/8" - 5 7/8"
23-35	7/8" - 13/8"	140-160	5 1/2" - 6 1/4"
25-40	5/16" - 11/16"	150-170	5.91"- 6.69"
30-45	1 3/16" - 1 3/4"	160-180	6.30" - 7.09"
32-50	1 1/4" - 2"	170-190	6.69" - 7.48"
40-60	1 5/8" - 2 3/8"	180-200	7.09" - 7.87"
50-70	2" - 2 3/4"	190-210	7.48" - 8.27"
60-80	2 3/8" - 3 1/8"	200-220	7.87" - 8.66"

Material--------------------------------------------------------------------------------------------------------------------------

W1 - All parts carbon steel with zinc plated
W2 - Hosing and screw carbon steel, band SS201/SS301/SS304/SS316
W4 - All parts stainless steel 201/301/304
W5 - All parts stainless steel SS316

Band Width---------------------------------------------------------------------------------------------------------------------

worm drive clamp, 9mm and 12mm, band width 5mm or 14.2mm are also available

Feature---------------------------------------------------------------------------------------------------------------------------

The German standard hoop clamp is made with precision, not only the appearance is beautiful, the sealing effect is very good, and it can withstand a certain pressure.
The German standard hoop clamp is easy to install and disassemble, saves installation time and improves work efficiency. It can be used many times and is not easy to be deformed.
German standard clamps provide a variety of hoop clamp types for different needs, corresponding to a variety of sealing rings, suitable for a wide range of applications, can completely replace the flange connection.

Application---------------------------------------------------------------------------------------------------------------------

DIN 3017 German type worm drive hose clamp is widely used in Auto,Gas Industry,petrochemical industry,pharmacy,food wine sewage treatment,Purification dust removal auto parts and other machine parts.

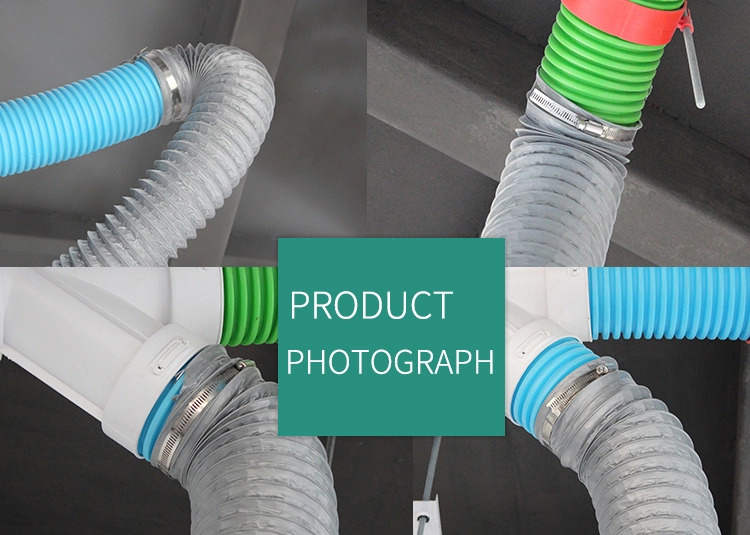

You can see some usage scenario in below picture.
